57BY-2

57BY-2

This kind of stepper motor is kindly used in automative equipment. Ext. printer, scanner, camera, medical instrument, household electrical appliance.
Product description
Parameters



SPECIFICATIONS:



Model Step Angle (Deg.) No.of Phase Voltage(V) Current(A) Resistance(Ω) Inductance(mH) No-load Staring Frequency(pps) Pull-in Torque (g.cm) Detent Torque (g.cm) Holding Torqu(g.cm) Leads Wdg Fig
49BY48L02 7.5 2 5 0.9 5.5   180 260 350 1700   a 1
57BY48L01 7.5 4 12 0.57 21 24.2 190 320 425 1500 UL 1007 26# b 2
57BY48L03 7.5 2 5.6 0.62 9   160 120 160 1200 UL 1007 26# a 3
57BY48L024A 7.5 2 5 0.4 12.5 30 120 50 400 1600 UL 1007 26# a 4
57BY48L036-01 7.5 2 24 0.5(恒流) 9 18.5 400 800 400 1500 UL 1007 26# a 5
64BY32L02 11.25 2 4.5 1.25 3.7 8.6 120 450 1300 3000 UL 1007 26# a 6

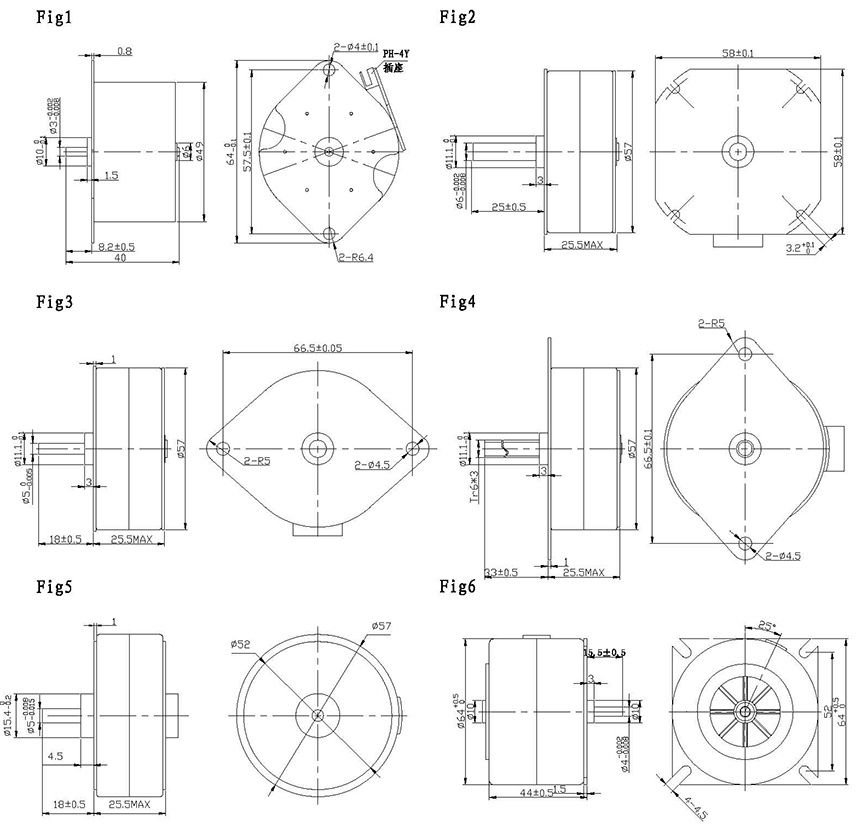

FIGURE:

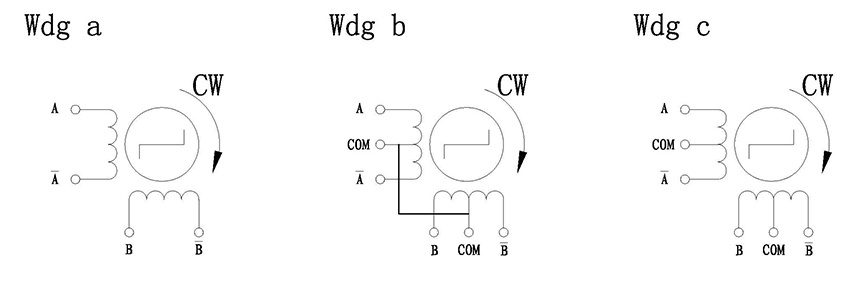

Wiring Diagram:



Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table
