42BYHJ-1

42BYHJ-1

This series stepper motor has gear box with many reduction ratio, are widely used in printer, scanner, camera, medical instrument, household electrical appliance.
Product description
Parameters



SPECIFICATIONS:



Model Step Angle (Deg.) No.of Phase Voltage(V) Current(A) Resistance(Ω) Inductance(mH) Moderating Ratio No-load Staring Frequency(pps) Pull-out Torque (g.cm) Leads Wdg Fig
42BYHJ01 7.5 4 12 0.44 27 15.1 1/24 380 1600 UL 1007 26# b 1
42BYHJ3-01 7.5 2 12 0.22 54 58 1/3 270 800 UL 1007 26# a 2
42BYHJ05-01 7.5 4 12 0.5(恒流) 10.7 5.2 1/5 450 1300 UL 1007 26# c 3
42BYHJ7-01 7.5 2 12 0.22 54 57.6 1/7 300 1000 UL 1007 26# a 2
42BYHJ10-06A 7.5 2 24 0.133 180 260 1/10 260 1600 UL 1007 26# a 4
42BYHJ12.25-01 3.6 2 12 0.16 75 75 1/12.25 350 90N(推力) AF 200 24# a 5
42BYHJ15-01 7.5 4 12 0.18 66 31.6 1/15 270 1500 UL 1061 28# c 6
42BYHJ20-01 15 4 12 0.18 66 41.6 1/20 240 1200 UL 1095 28# c 7
42BYHJ25-02 7.5 4 12 0.44 27 63 1/24 380 1660 UL 1007 26# b 1
42BYHJ50-08 15 4 24 0.08 300 175 1/50 210 2100 UL 1007 24# c 8



FIGURE:

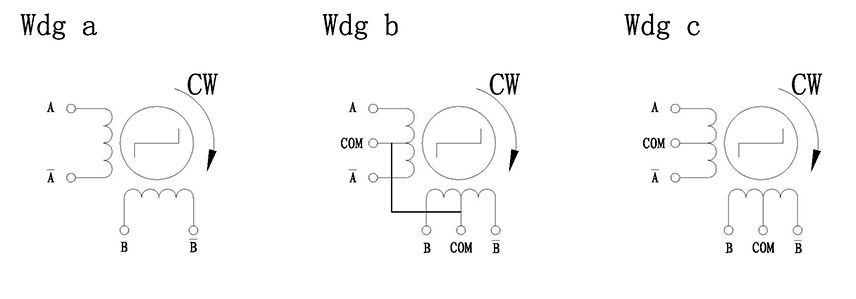

Wiring Diagram:
